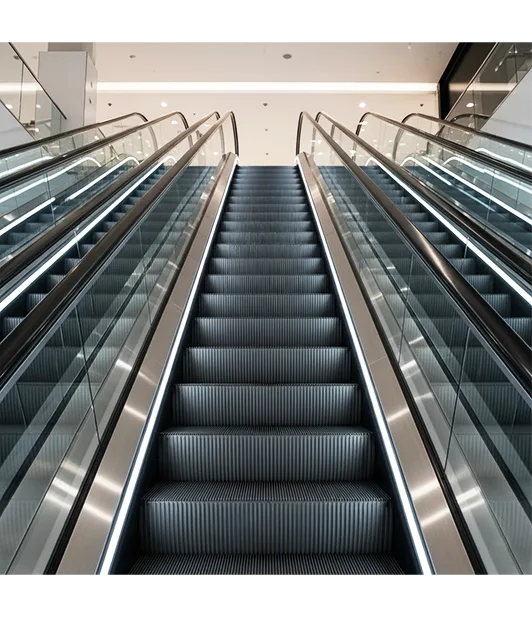

FUJI Escalator | Escalator for commercial space

Modern escalators revolutionize vertical transportation in commercial buildings and high-rise complexes, efficiently moving thousands of people daily with minimal energy consumption. Unlike elevator cars that transport people in enclosed spaces, escalators provide continuous flow solutions where high passenger volume demands optimized throughput.

KEY APPLICATIONS

• Shopping Malls: Increase customer flow between retail levels (8,000+ people/hour)
• Transit Hubs: Airport terminals, subway stations & transportation centers
• Healthcare Facilities: Connect medical towers with gentle-incline models
• High-Rise Buildings: Lobby-to-concourse connections in skyscrapers
• Entertainment Venues: Stadiums, theaters & convention centers

TECHNICAL SPECIFICATIONS

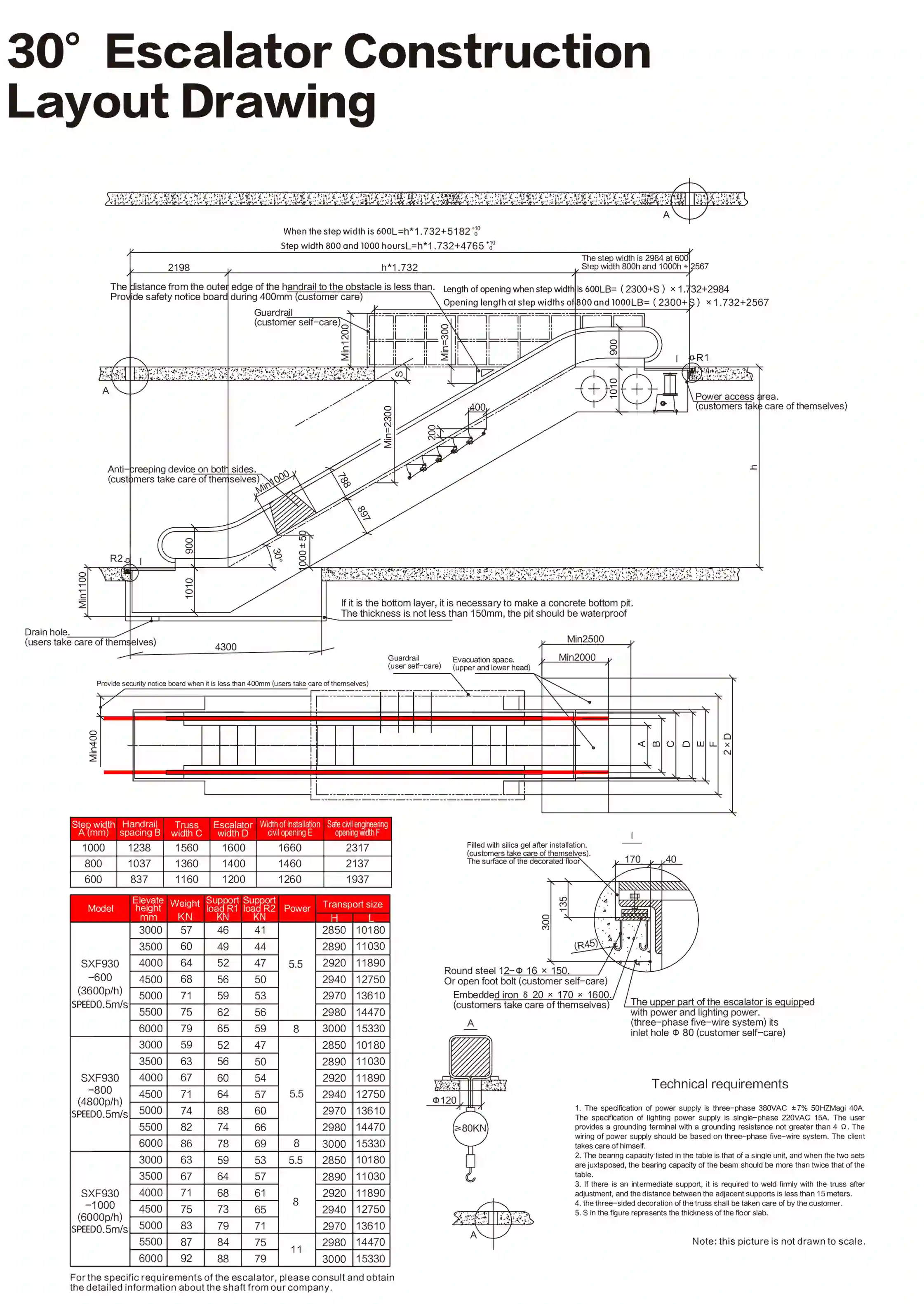

Drawings & Parameters:

ENGINEERED COMPONENTS

• Drive System: Regenerative gearless motor recaptures 25% braking energy
• Step Chain: Forged steel links with 50,000-hour lifespan
• Safety Package:
  • Comb-tooth sensors (ASME A17.1 compliant)
  • Emergency stop buttons at landings
  • Skirt obstruction sensors
  • Handrail entry protection
• Control Intelligence:
  • IoT-enabled predictive maintenance
  • Variable speed during off-peak
  • Auto-shutdown during inactivity

ENERGY EFFICIENCY INNOVATIONS

1. LED Lighting: Step demarcation & balustrade illumination (80% less power)
2. EcoDrive System: Reduces consumption during partial loads
3. Sleep Mode: Powers down to 0.4 kW during low-traffic periods
4. Regenerative Converters: Feed surplus energy to building grid

WHY ESCALATORS BEAT ELEVATORS FOR HIGH-TRAFFIC ZONES

"In department stores, escalators move 3x more people per hour than elevator banks occupying equivalent space" - Vertical Transportation Journal

Case Study: Dubai Mall installed 26 escalators handling 120,000 visitors daily with 99.98% uptime - reducing elevator congestion by 68%
